Torque Arm
We at Karma Steels Private Limited, continuously making / manufacturing Torque Arm in different sizes, weight and capacity as per customers requirement.
Karma Steels Private Limited are well known manufacturing company for torque arm or torque rod assembly.
Torque Arm function :
Product Range
Available Variants

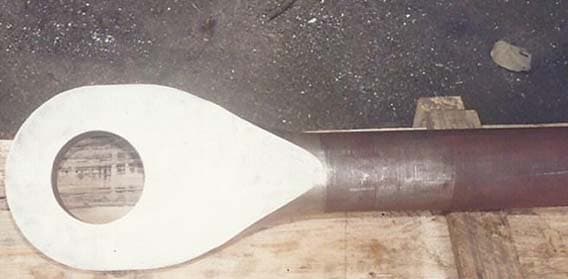

Torque Arm
- •For Atox Mill No. 37.5
- •Finish Wt. 95 Kg.
- •Material : EN 24, Forged, Heat Treated & Finish Machined.

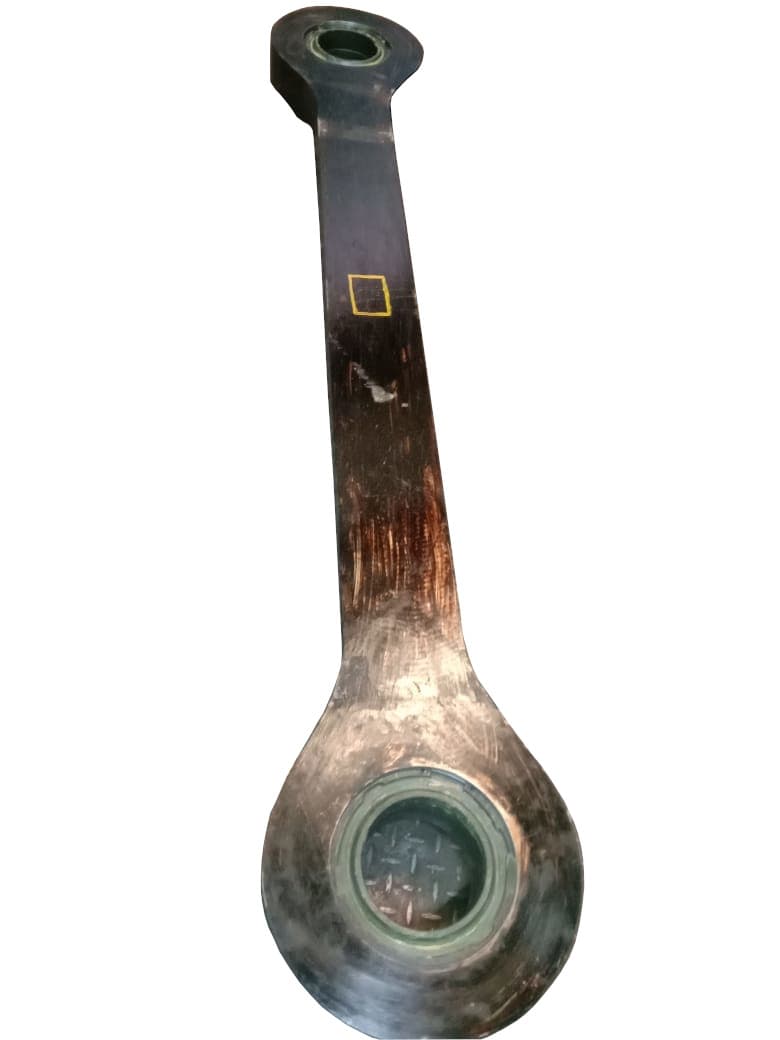

Torque Rod
- •For Atox Mill No. 45
- •Finish Wt.: 290 Kg.
- •Material : 34CrNiMo6, Forged, Heat Treated & Finish Machined, fitted with Radial Spherical Bearing GE140ES
- •Tested For : Tensile & Impact Strength, Ultrasonic Test as per SA 388 (acceptance criteria 3mm FBH).Entire Surface area checked by Magnetic Particle Testing.
- •Overall Length : 2193 mm
- •Hole Center Distance : 1833 +/- 0.30 mm
- •Eye Width : 360 mm
- •Thickness : 95 mm
